Linksys SPA-941

The Linksys SPA-941 IP telephone can be configured as a two (2) line or, via a simple software upgrade, a four (4) line full featured business phone with pixel based graphical display, speakerphone and headset port. Stylish and functional in design, the SPA-941 can be used in residential, SOHO, enterprise and small to medium business service offerings including IP PBX, hosted IP telephony and IP Centrex. Out of the box, it is configured for DHCP. This means that it gets its IP address from your DHCP server automatically.

NOTE: We have seen instances where installing the SPA-941 behind a firewall which blocks ICMP packets causes problems with registration. Try turning off any ICMP blocking on your firewall.


STEP 1

You must first determine what IP address it received. To do this, on the phone dial pad, press the "envelope" button and then press the button under the LCD screen word "save".




STEP 2

Go to any browser equipped computer on your network and enter the address: http://<IP ADDRESS>/
(where <IP ADDRESS> is replaced by the address that was given to you in STEP 1).




STEP 3

Click on the "Admin Login" button near the top right side of the screen, then click on the "Ext 1" tab.

Globalink Cisco Linksys SPA-941 IP Phone Setup



STEP 4

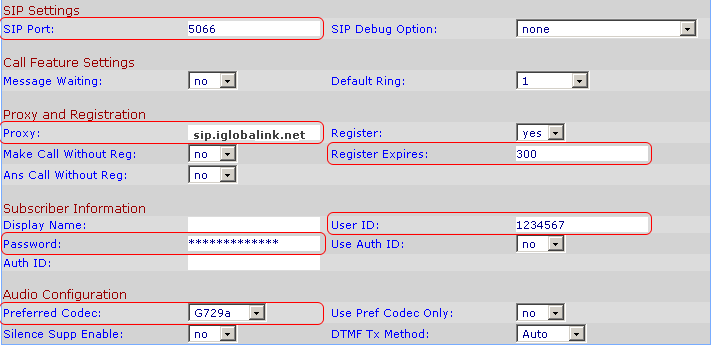

You need to modify only a few parameters from the factory default. They are listed here:



SIP Port:   5066
Proxy:   sip.iGlobalink.net
Register Expires:   300
User ID:   Enter the phone number you chose when you signed up for Globalink service.
Password:   Enter the password that you chose when you signed up for Globalink service.

Preferred Codec:   G729a
Globalink Cisco Linksys SPA-941 IP Phone Setup



STEP 5

If the 2nd extension is needed, click on Ext2 and repeat Step 4.
